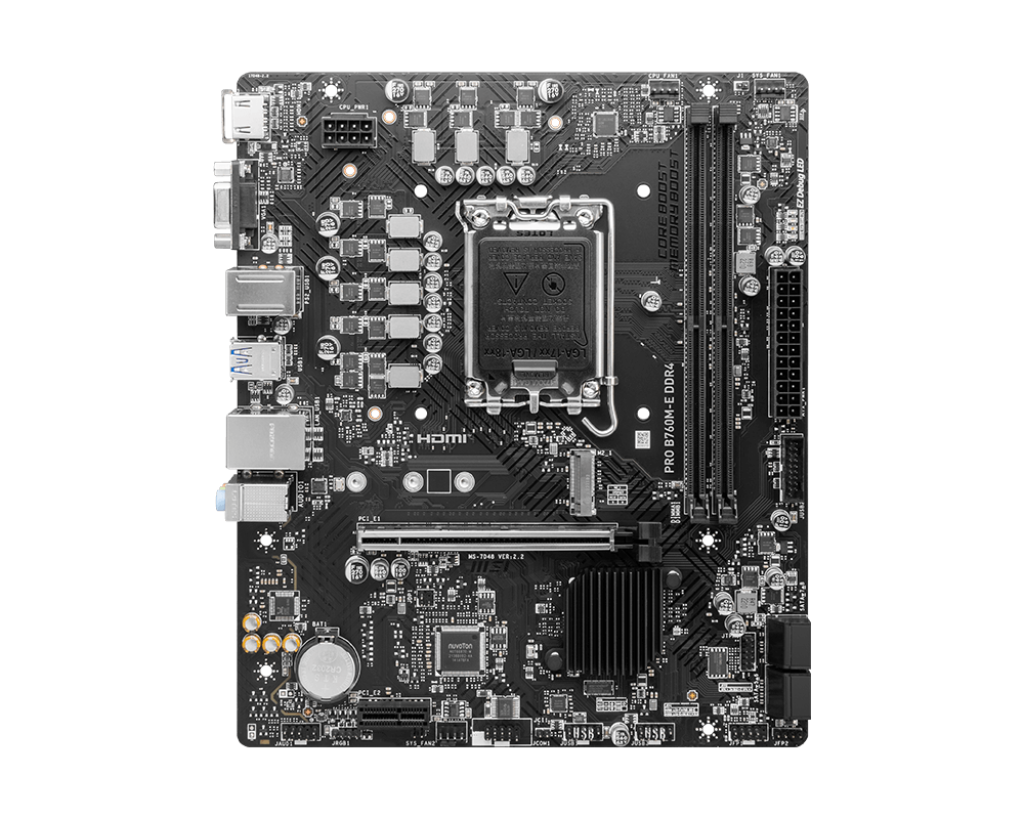

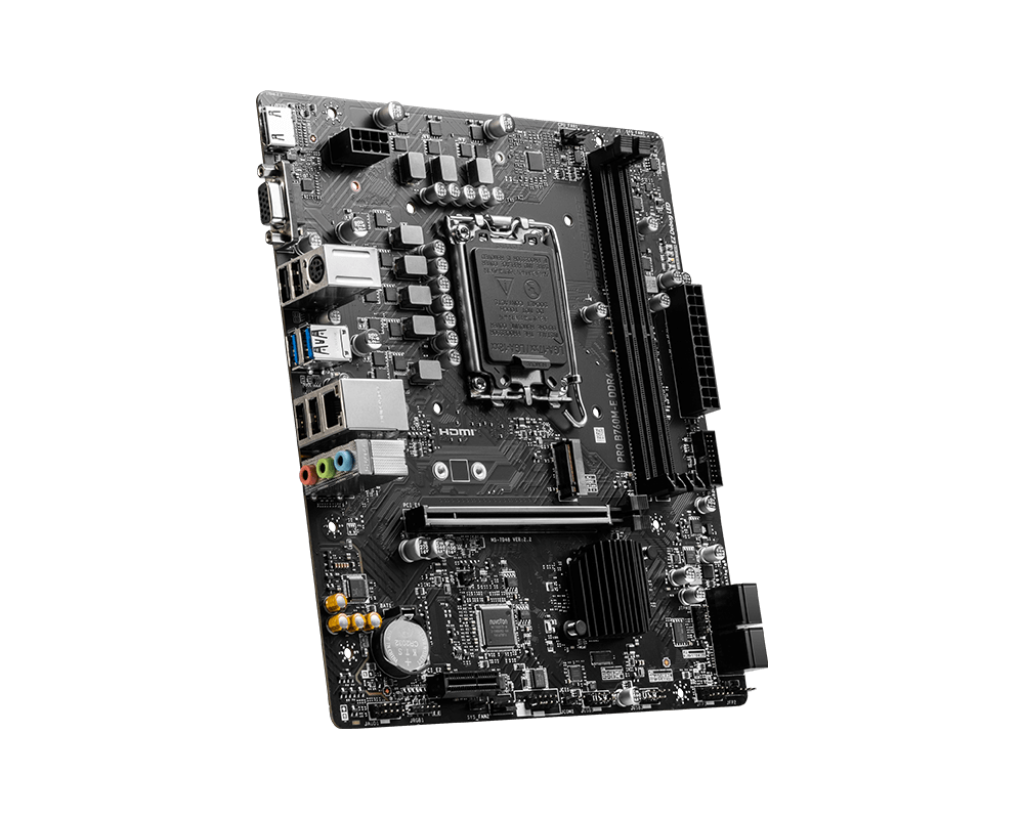

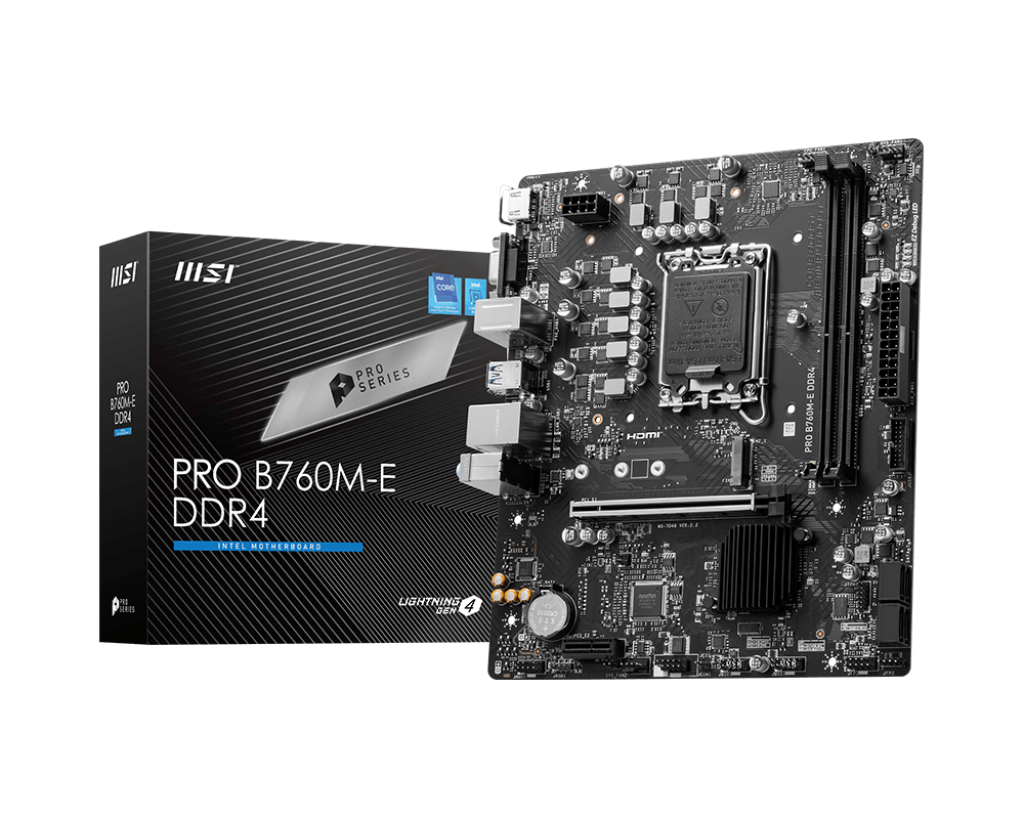

MSI PRO B760M-E DDR4 Intel LGA1700 Micro-ATX Motherboard

MSI PRO B760M-E DDR4 Intel LGA1700 Micro-ATX Motherboard - Image 2

Click to enlarge

MSI PRO B760M-E DDR4 Intel LGA1700 Micro-ATX Motherboard - Image 3

MSI PRO B760M-E DDR4 Intel LGA1700 Micro-ATX Motherboard

Name: MSI PRO B760M-E DDR4 Intel LGA1700 Micro-ATX Motherboard
SKU: PRO-B760M-E-DDR4
Availability: PreOrder

MSI

SKU: PRO-B760M-E-DDR4

PRO B760M-E DDR4 is designed with tons of flexible tools with DDR4 memory version.

Support Intel^® Core™ 14th/ 13th/ 12th Gen Processors, Intel^® Pentium^® Gold and Celeron^® Processors for LGA 1700 socket
Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

₨ 28,499

Warranty	2 Years

Available on backorder

Description

SPECIFICATIONS

Chipset	INTEL B760
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory	2x DDR4, Maximum Memory Capacity 64GB Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz • 1DPC 2R Max speed up to 4600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel^® Extreme Memory Profile (XMP)
Onboard Graphics	1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)
Audio	Realtek^® ALC897 Codec 7.1-Channel High Definition Audio
Storage	1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)
LAN	Realtek^® RTL8111H Gigabit LAN
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 1x USB 5Gbps Type A ports
LED FEATURE	4x EZ Debug LED

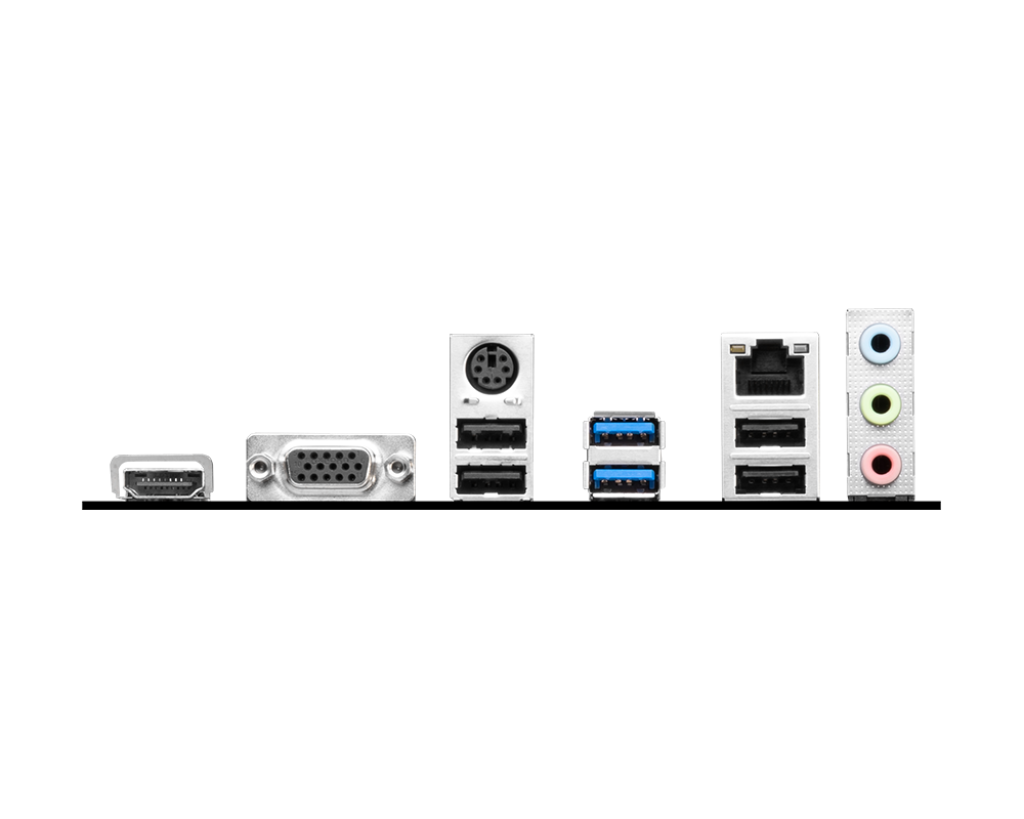

BACK PANEL PORTS	HDMI™ VGA Keyboard / Mouse USB 3.2 Gen 1 5Gbps (Type-A) LAN port Audio Connectors USB 2.0 USB 2.0
OPERATING SYSTEM	Support for Windows^® 11 64-bit, Windows^® 10 64-bit
BOX CONTENT
PCB Info	mATX 200mmx236.16mm
